Versatile digital indicator with LCD display

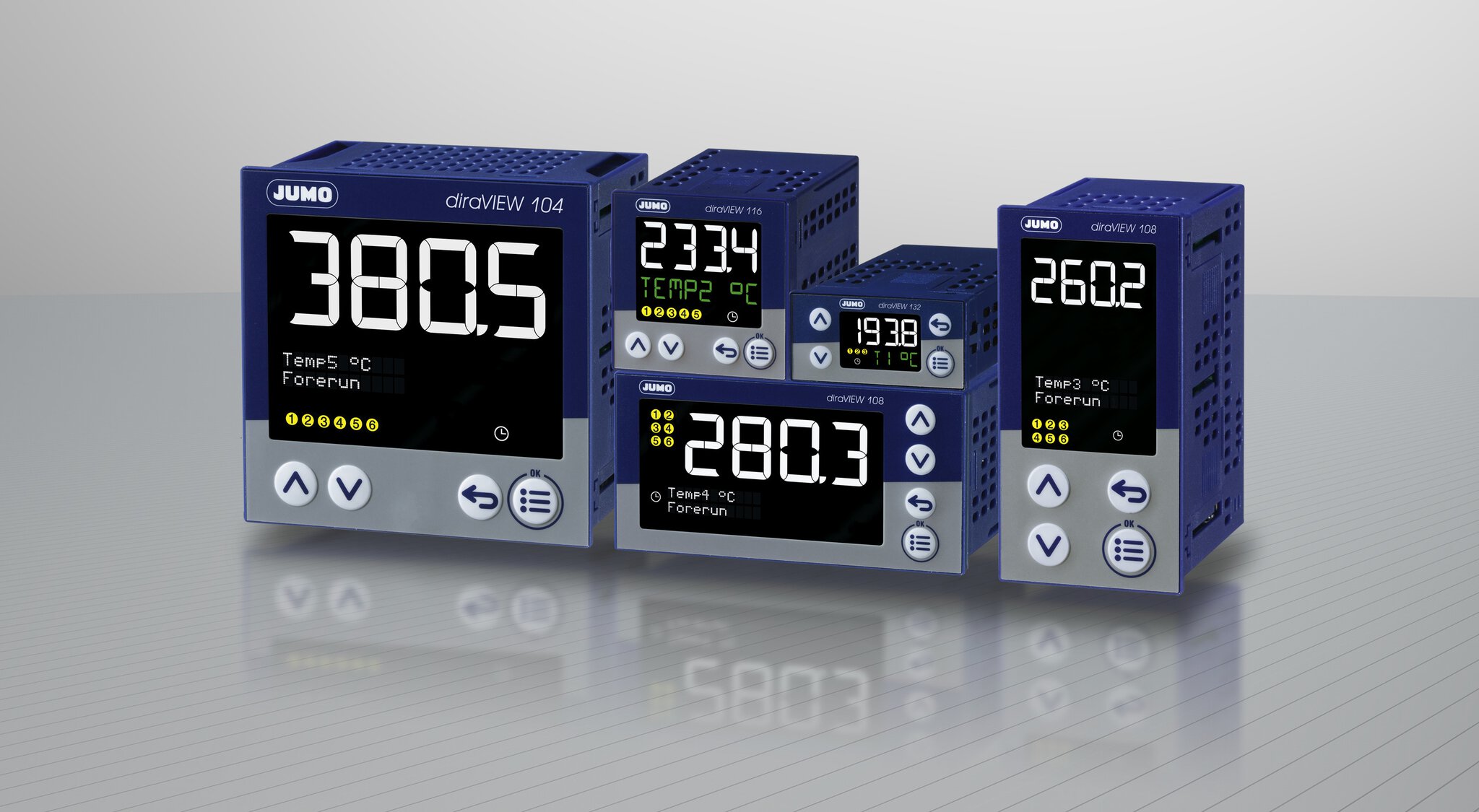

Vibrant Prospects with JUMO diraVIEW

The new JUMO diraVIEW digital indicator series is used for displaying various process variables on-site. The intuitive operation and configuration in plain text on the device shortens startup times and also allows for adjustments to be made without operating instructions.

Downloads

Press text (German)
(DOCX, 394.1 kB)
Press text (English)
(DOCX, 393.4 kB)
Press photo
(JPG, 483.9 kB)
Business card
( VCF, 246 B)

The JUMO diraVIEW multifunction measurement input allows for the connection of thermocouples, RTD temperature probes, resistance transmitter, resistance potentiometers, and standard signals 0(2) to 10 V / 0(4) to 20 mA. An alarm message can be displayed in "plain text" on the display and then reported via relay or digital outputs.

The five different installation formats from the 48x24 mm compact format to the 96x96 mm large format as well as the high-quality IP65 protection on the front make it suitable for a wide range of uses in various industries.

Typical indicator functions are available such as min./max. value, measured value hold, as well as tare function for weighing applications and delayed power-on. The indicator passes on the current measured value to higher-level systems via the RS485 interface or the analog output. The customer-specific linearization with 40 value pairs or a mathematical 4th order polynomial as well as the math option enable easy adjustment of the special sensors.

The "Structured text" option can be used to program small applications in ST code. Examples include the rolling display of current, minimum, and maximum values shown as plain text and the option for manually switching using the Up/Down button. The ST code can be created using the easy-to-use setup program and the integrated editor. It can be debugged online via USB port.

The JUMO diraVIEW series is available in power supply versions for AC/DC 20 to 30 V and 110 to 240 V (AC).
